Product series:

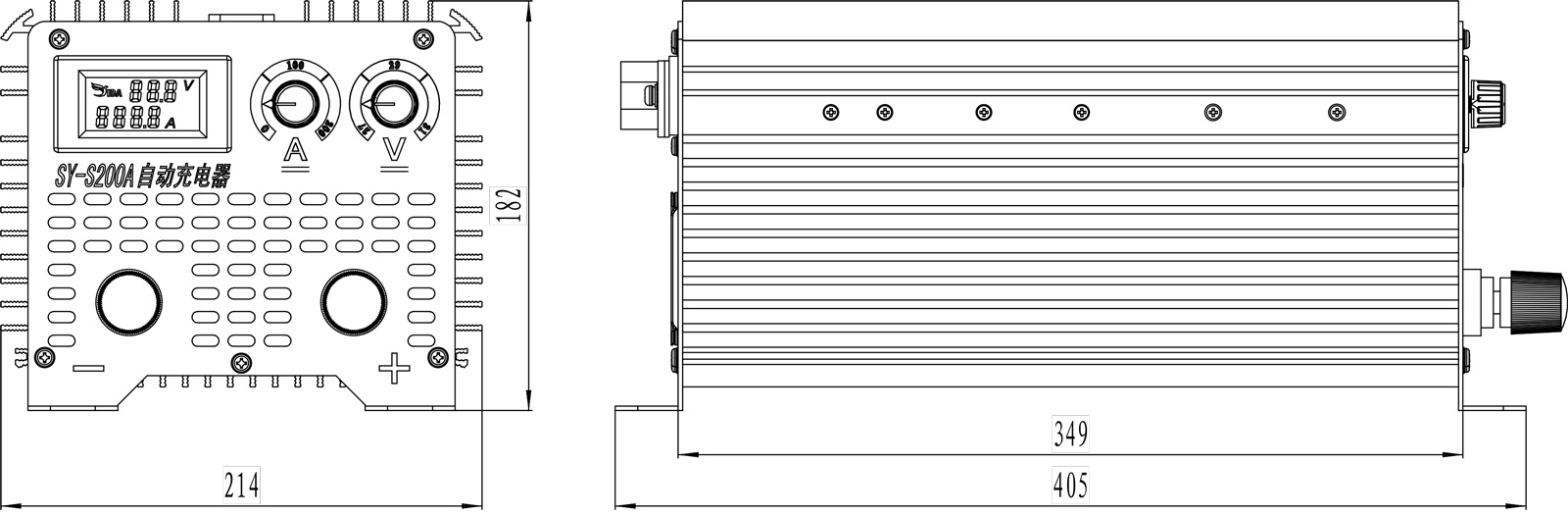

SY-S200A automatic battery charger
SanOu offer a full line of competitive products,that was regulator power supply,spacer,regulator box,intergration speaker,GPX fix sensor,magnetic fix sensor,dadar shell,automotic rudder,speaker etc.
Description
SanOu offer a full line of competitive products,that was regulator power supply,spacer,regulator box,intergration speaker,GPX fix sensor,magnetic fix sensor,dadar shell,automotic rudder,speaker etc. With the "Credit" as its business idea, SanOu will do the best to serve their customers for the good future.
Marine ancillary products refer to all marine equipment and devices except the hull, which is an important part of the shipbuilding industry. These products cover a wide range of equipment and systems required for navigation, operation, safety and daily operation of ships. Specifically, marine ancillary products mainly include the following categories: Power equipment: such as ship main engine, auxiliary engine, steam boiler, thruster, shafting, etc., which are the core equipment that provides ship power and power. The main engine of a merchant ship is usually the ship's diesel engine, while the auxiliary power unit is the ship's generator, which provides electrical energy for the ship in normal and emergency situations. Maneuvering equipment: including steering gear, steering gear, autopilot, remote control system, etc., which are used to control the course, speed and attitude of the ship. Loading and unloading equipment: such as cranes, cranes, conveyor belts, etc., used to realize the loading and unloading and transportation of goods.
It is specially designed for the unstable voltage and frequency of marine generator sets. It adopts the latest integrated electronic circuits which is low-loss, high-power, high-frequency, and can adapt to wide voltage and wide frequency input.
Advantages: constant current and constant voltage. Set the current and voltage according to the battery capacity, so that the battery will not be damaged due to charging overload. The charger will automatically stabilize the voltage, and the battery will become an auxiliary function, so that the battery can extend the service life, and can also be used as a regulated power supply to control the DC voltage of the ship, also can stabilize the voltage around 28.5～31V. The internal resistance of the product is made by the long charging wire, which affects the charging current. Therefore, a battery terminal voltage detection circuit (a detection line is added to the two main lines) is added to detect the voltage across the battery to stabilize the charging current.
Input voltage:AC160-360V
Output voltage:DC27.5V～31V
Efficiency:≤85%
Maximum current: 20A
Working temperature: -10～50. C
Output voltage: 24V (27.5～31V) adjustable
Output current: 0～200A
Battery type： Lead acid battery
